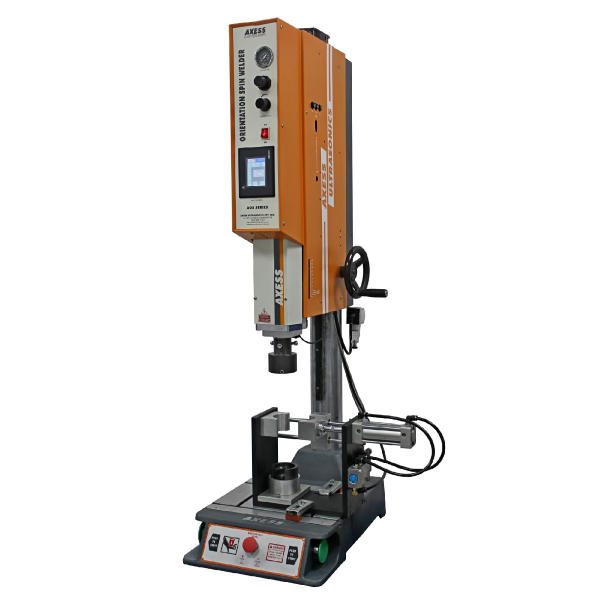

Spin Welding Machine AOSP150
Rs.390,000
(Taxes to be paid extra)
Model: AOS-150
Condition: New
Min Order Qty: 1 Unit
Download CatalogueSend Enquiry
These machines are suitable for auto & motorcycle filters, RO water purifier filter, water jug and Round Work pieces.
Spin welding is a process that joins circular thermoplastic parts by bringing the part together, under pressure, with a circular, spinning
motion. One part is held stationary in a fixture, while the other is rotated against it under pressure. The frictional heat that is generated causes the part
interfaces to melt and fuse together, creating a strong, hermetic seal. Application Material: HDPE, PP, PE, PVC,
ABS,PET and nylon Material and ect. 8. Application Scopes: Widely used in the Electronic
In stock
Description
| Technical Specification of Model AOS-150 | |
| Dimension L x W x H | 440mm x 690mm x 1500mm |
| Weight | 120 Kg (Approx) |
| Input Voltage &Power | 220V, 1 Phase/1.5 KW |
| Motor and RPM | 1.5 KW, 3000RPM (OMRON) |
| HMI | 4.3’’ (OMRON) |
| Welding Mode | Time/Rotation/Depth |
| Air pressure req. | Up to 6 Kg/cm square |
| Productivity | 8-15 Operation/minute |
| Auto/manual | Both operation |
* Accurate positioning
* Provide high-torque movement device with motor 1-50 ma
* PLC programmed control systems and human- computer interface for adjusting welding parameters.
* Weld the round work-pieces which need positioning.
* Four-columned frame structure with high-precision straight bearing and movement from top to bottom completely eliminate the couple & backwards.
Spin welding machines create strong plastic joins through rotational friction. They typically feature sleek designs, user-friendly control panels, and safety measures. The resulting welds are of high quality, making them suitable for various industries and providing an aesthetically pleasing manufacturing process.
