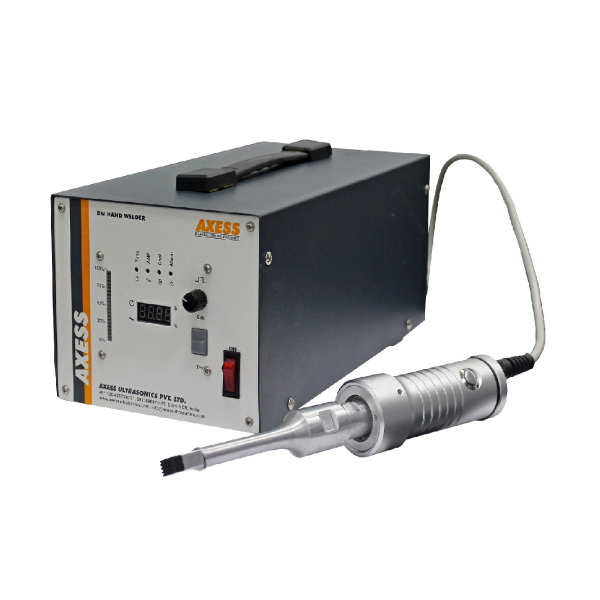

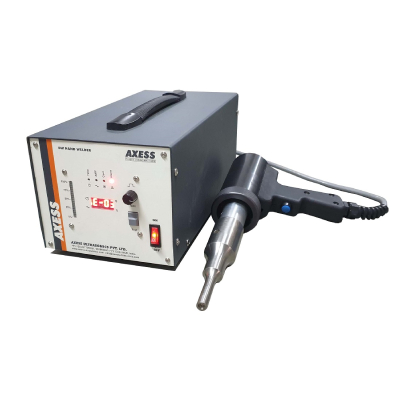

Ultrasonic Hand Gun (Hand held machine)
Rs.145,000
(Taxes to be paid extra)
Model: AW3580H
Condition: New
Min Order Qty: 1 Unit
Download CatalogueSend Enquiry
Hand operated system generally used where access to the part is difficult, hard to reach or for large applications. Ideal for welding fabrics made of chemical synthetic fibers, thermoplastic sheets, ribbons and pp sheets etc. for precise, safety and perfect packing.
Applications
- Automobile bumper riveting
- Single point screw inserting
- Single welding
- Packing strapping welding
Special Features:
- One key start, simple operation and easy operate
- Auto Tuned, Time mode and Power mode.
- Effectively balance the amplitude while frequency is locked based on the frequency and amplitude control using PID
- Power outburst mode, save energy comparing to the traditional ultrasonic hand-held welding machine.
- Welding amplitude adjustable from 60% to 100% by 1% step.
In stock
Description
| Technical Specification Machine | |||
| Particular | AW3580H | AW3512H | AW2012H |
| Output / Frequency | 800 W, 35 Khz | 1200 W, 35 KHz | 1200 W, 20 KHz |
| Weight(with gun) | 12 kg (approx) Khz | 12 kg (approx) KHz | 16 kg (approx) KHz |
| Dimensions (mm) | L-365 x W-183 x H-160 | L-365 x W-183 x H-160 | L-365 x W-183 x H-160 |
| Input Supply | 220V, 50 Hz | 220V, 50 Hz | 220V, 50 Hz |
